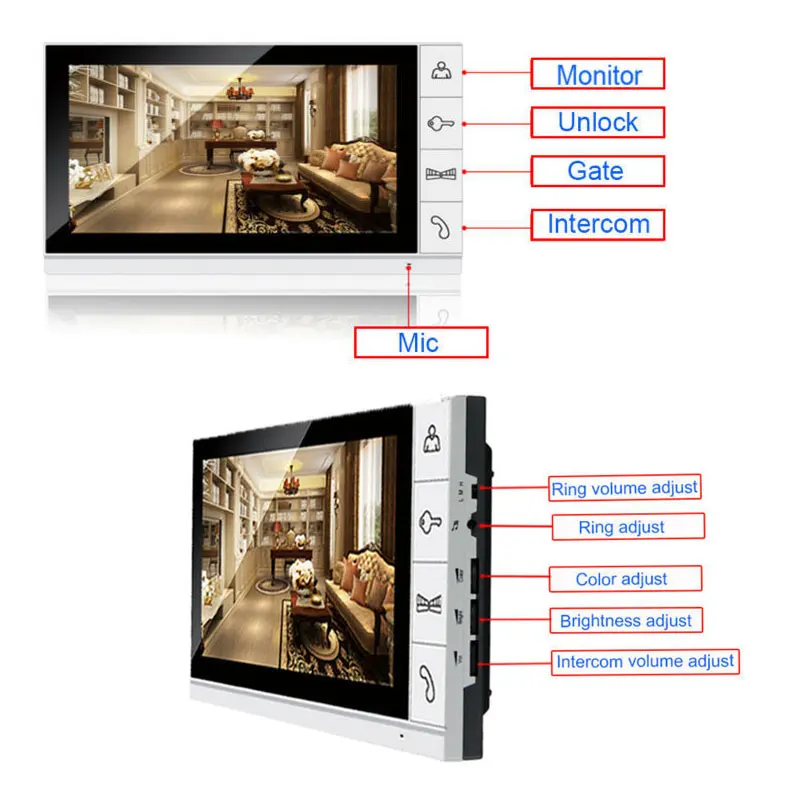

This Hard-wired Video Door phone Intercom System consists of one 9 inch color TFT monitor and one door camera. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.
In order to satisfy most of the customers, a complete doorphone system with
RFID keyfobs, a push release button, a electric Electric Control Door Lock, a remote control and a power supply have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.
- With micro-processing technology, auto-remote control, excellent performance and high reliability.
- The TFT 9 inch digital color LCD for monitor.
- Clear night-viewing , 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
- This only Support 1PCS monitor and 1pcs Outdoor camera
- TFT color screen with low power consumption, no radiation and high definition.
- Hands-free intercommunication.
- Brightness, chroma and volume adjustable.
- Comes with 10 RFID keyfobs, a push release button switch.
- Support maximum 500 id keyfobs or cards
- 12-chord melody rings for option.
- Cabling: 4-core connection cable
- 700 TVL Sony CCD Camera.
- Do not disturb mode
This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.
It controls electric lock directly.
Can reduce the load of access controller, save wiring to reduce the hidden trouble
Based delay control circuit, lock time can be in 0-15 seconds
Automatic protection function, unexpected situations such as when the power supply
short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
Operative device: E/M Lock, Access Controller, Exit Push Button.
If you purchase this Access Control System now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:
lectric Control Lock
This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.
NO Mode – (Locked while power is off);
Material: Stainless Steel;
Authority Certification: CE & MA Approved
Application: wood/iron doors;
Working Voltage: 12VDC
Working Current: 0.2-0.45A
Dimension (Face Plate): 120mm x 105mm x 35mm
Center distance: 60mm
Door distance: 35-55mm
We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.

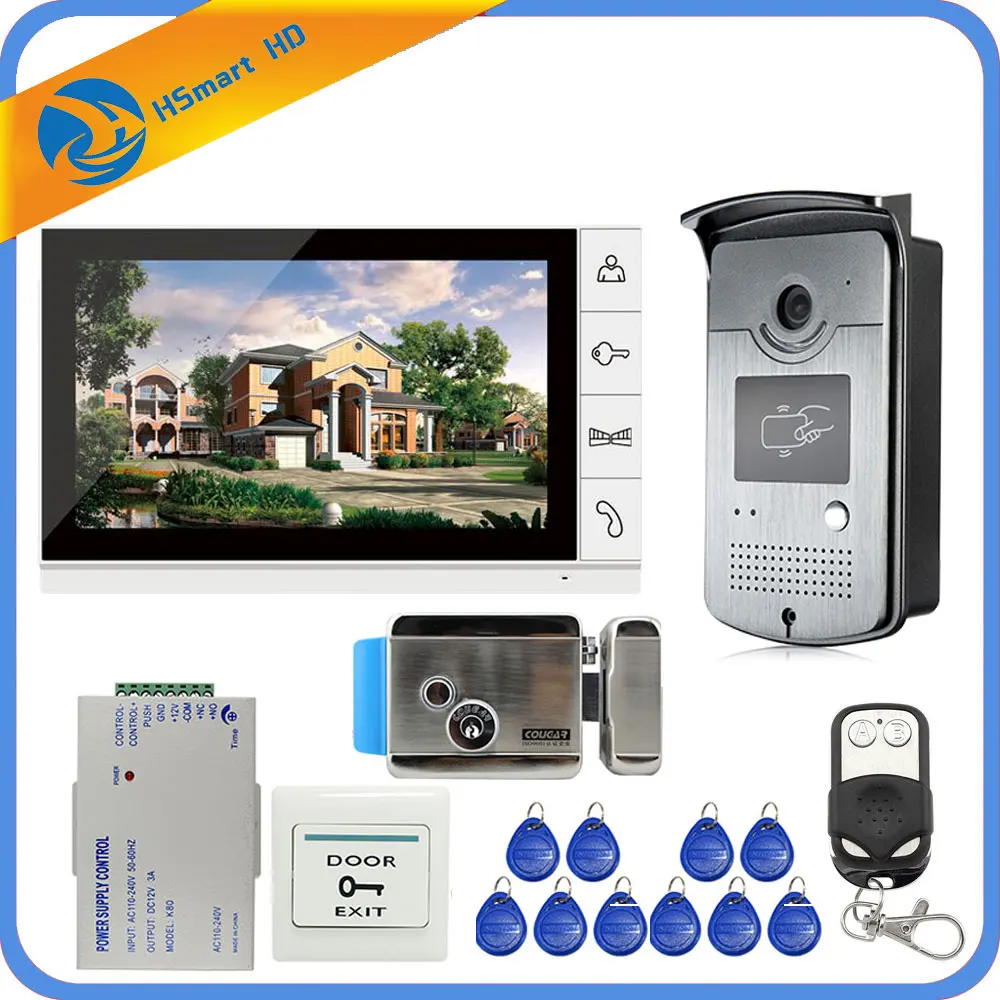

1 x Outdoor camera
1 x9 inch Indoor monitor
1 x 12V 3A power supply
1 x Remote control (NOTE:The remote control without batteries)
1 x power adapter (We will send AU/EU/US/UK type according to your address)
10 x RFID keyfobs (Please leave us message if you need more keyfobs)
1 x testing cable
1 x exit switch
1 x connetcors and screws for installation
1 x user manual
1 x electric control door lock
